Redcat 1/8 Kaiju 6S
4WD Monster Truck Brushless RTR
Manual
| redcat_kaiju.pdf |
OverviewThe Redcat KAIJU 1:8 Scale MT Brushless 6S ready Monster Truck is powerful and purpose built and will accept single or double LIPO batteries. The Kaiju can handle a single 6S LIPO or double 3S LIPO batteries. If you prefer to run 4S through the Kaiju, you’ll be happy to know it is also capable of running a single 4S LIPO or double 2S LIPO batteries.
The Kaiju’s power and high-performance comes the 2100kv Hobbywing brushless motor and 150A ESC. All that power requires strength and lasting durability, and the Kaiju has certainly succeeded. Steel CVA drive shafts with captured joints, steel internal differential gears, 17mm aluminum hex hubs, rubber sealed ball bearings, sealed drivetrain and extra durable plastics are some of the performance and durability components standard on the Kaiju. |
|
The Kaiju’s beautiful paint and a realistic decal set really make this truck stand out. The Kaiju even includes little luxuries like body clip lanyards that will help ensure your time is spent ripping through the dirt with the Kaiju’s aggressive tires, instead of shuffling through it, searching for lost body clips.
The Kaiju also includes a realistic looking and durable front bumper, with D-ring shackles and clear LED lights. Two red LEDs illuminate the rear of the Kaiju. This is one amazing monster truck.
The Kaiju also includes a realistic looking and durable front bumper, with D-ring shackles and clear LED lights. Two red LEDs illuminate the rear of the Kaiju. This is one amazing monster truck.
Needed to Complete
- (4) AA Batteries for Radio
- (2) 2S or 3S LIPO batteries OR
(1) 4S or 6S LIPO Battery - (1) LIPO Charger

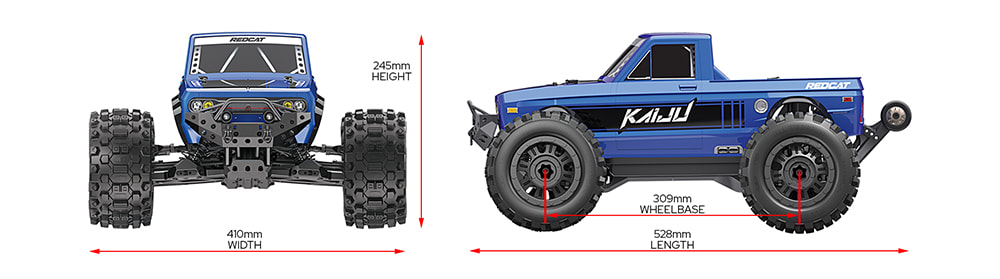

Product Specifications
|
Wheelbase:
12.2 in (309mm) Wheel Type: One-piece, black in color Servos: Hexfly 347 oz-in (25 kg-cm) high torque digital waterproof steel gear steering servo Shock Type: Aluminum body coil over Speed Control: Included Tire Tread: All-Terrain Vehicle Type: Monster Truck Water-Resistant: Yes Product Height: 9.6" (245mm) Product Length: 21" (528mm) Product Width: 16.1" (410mm) Radio: Included Rear Track: 16.1 in (410mm) Receiver: Included Scale: 1/8 Max Battery Dimensions: L,W,H, 5.45 x 3.1 x 1.81 in (138 x 79 x 46mm), dimensions are for two 3S LiPo batteries |
Motor Size:
4268 2100Kv brushless, 4-pole Motor Type: Brushless Front Track: 16.1 in (410mm) Power Type: Electric Differential: Steel gears Drivetrain: 4WD Ground Clearance: 2.3" (58mm) Chassis: Composite plastic with adjustable wheelie bar Completion Level: Ready-To-Run Charger: Sold Separately Approximate Assembly Time: No assembly required Ball Bearings: Rubber sealed Battery: One 6S, one 4S, or two 2-3S LiPo with T-plug (sold separately Body: Trimmed and painted pickup truck with front and rear LED lights Brakes: Integral with ESC Bushing Material: Metal |
